P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Name: P3125 DC48V Outdoor Advertising LED Screen 7200CDSqm Transparent
Brand: Minvol
Price: 1 USD

Brand Name : Minvol

Model Number : MH-G-2R2G2B-P25*50E

Certification : CE/RoHS/FCC

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200sqm/day

Delivery Time : 15-25 Days

Packaging Details : Carton

LED brand : Epistar

Input voltage : DC36-48V

Brightness : 7200CD/sqm

LED Color : RGB

Screen dimension : Customized

Tube chip color : Full Color

Usage : Outdoor

Display function : Video,Animation

Color : RGB

Contact Now

Outdoor Glass Transparent P31.25 P25 Full Color Shopping Mall Building Curtain LED Display

Product description

LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display. The screen adopts aluminum alloy light bar splicing, each group of light adopts signal isolation technology, even single bar has been broken, still can not influence cach other. The unit screen has high heat dissipation efficiency, no need air conditioning, and can be installed in the front or rear of building facade, it makes the project application more simple, more flexible, more efficient. lt is the best choice of indoor and outdoor display screen.

Product parameters

Product Name:	P25*50 LED louver screen
Item No:	MH-G-2R2G2B-P25*50E
Light Source Brand:	Epistar
Light Source Model:	346 2R2G2B DIP
Size/Unit:	1200mm(L)*800mm(H)
Viewing Angle:	H120°/V60°
Power(W)/㎡:	260W/sqm
Average Power/㎡(W):	90W/sqm
Voltage:	DC36-48V
Pixel Pitch(mm):	25mm(H)*50mm(V)
Light Bar Size(mm):	14mm*1200mm
Resolution:	16pixel*48pixel/Unit
LED quantity/㎡(PCS):	800 pixel/sqm
Brightness(CD/㎡):	＞7200CD/sqm
Grey Scale:	65536
Refresh Rate(Hz):	＞5000Hz
Transparency:	＞72%
Weight:	10.8kg/sqm
Protection Grade:	IP67
Operation Temperature:	-20℃~50℃
Life Time:	≥50000 hours
Related Cert.:	CE RoHS FCC

Product pictures

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Module size

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Product Installation Schematic

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Control Diagram

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

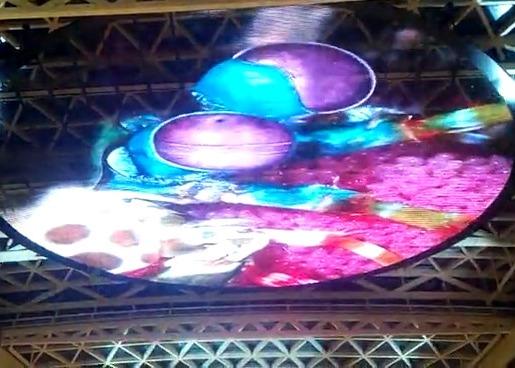

Projects pictures

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Qualification Certifications

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Honorary Qualifications

P31.25 DC48V Outdoor Advertising LED Screen 7200CD/Sqm Transparent

Exhibition pictures
